Crawler Dozers

D61EX/PX-24

Versatility and power at your fingertips

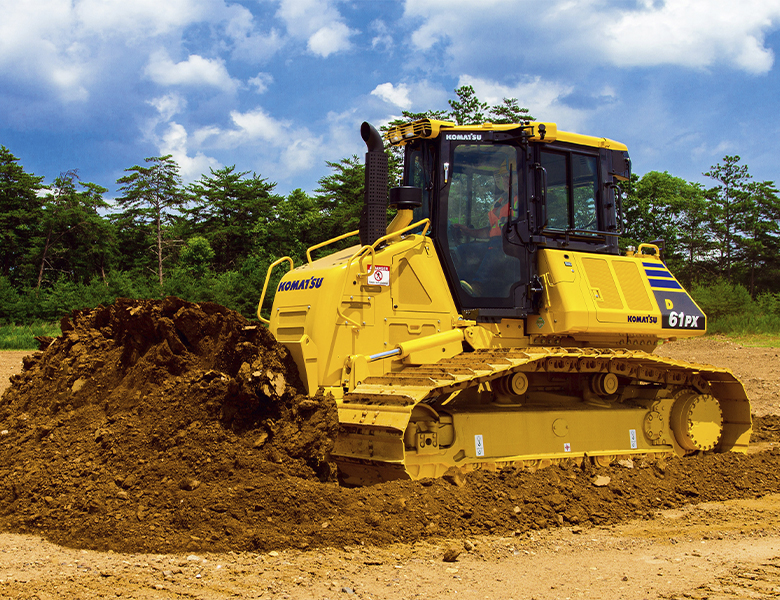

The D61EX-24 / D61PX-24 dozer is an all-round performer and a standout choice for any grading or earthmoving application.
  • a unique view on the blade thanks to the steeply sloped engine hood
  • EU Stage V emissions-certified engine with a “Heavy-duty” aftertreatment system
  • hydrostatic transmission control systems
Get the brochure
Engine Power
126/169 kW/HP
Blade Capacity
3,4-3,8 m³
Blade Size
3,86 × 1,16 (PAT) m x m
Operating Weight
18,5-19,4 t.
Powerful
Komatsu Crawler Dozer
Powerful

The hydrostatic drive line is a key factor in the performance of the D61-24 dozer. It supplies high drawbar pull when needed and a highly fuel efficient drive line for grading and precision work. With a choice between two operating modes, the operator can select either “quickshift” or “variable speed” to match a complete range of applications in the most economic and easy way.



First-Class Comfort
First-Class Comfort
Operator comfort is essential for safe and productive work. The cab on the D61-24 is quiet and comfortable, an ideal environment to concentrate on the job. Its hexagonal design and large tinted glass windows offer excellent panoramic visibility. The high capacity climate control system pressurises the cab to keep dust out. A high quality sound-absorbent lining covers the interior to minimise noise levels for the operator.
Safety First
Komatsu Crawler Dozer
Safety First
A super slant nose gives the D61-24 the best visibility of any dozers on the market. This unique feature dramatically increases efficiency and jobsite safety, with operators now always having full view of both the blade and the ripper and of objects close to them. The new cab-forward design, with integrated ROPS/FOPS and large glass windows, provides more room and places the operator closer to the blade, further improving visibility and comfort.
Environmentally Friendly
Komatsu Crawler Dozer
Environmentally Friendly
The Komatsu EU Stage IV engine is productive, dependable and efficient. With ultra-low emissions, it provides a lesser environmental impact and a superior performance to help reduce operating costs and lets the operator work in complete peace of mind.
Easy Maintenance
Komatsu Crawler Dozer
Easy Maintenance
Well located service doors allow convenient and safer ground access to daily service points. With the radiator located at the rear of the machine, engine fuel and oil filters can be easily accessed from the front of the engine compartment. Remote grease points facilitate lubrication of the C-frame pivots and angle cylinder bearing.
KOMTRAX and Komatsu Care
Komtrax™ is Komatsu’s state of the art wireless monitoring system. It gives you an easy way to track your machines, monitor their performance and stay up to date about the status of your equipment. Knowledge gained from KOMTRAX saves you time and maximises your profits.

Komatsu CARE™ is a maintenance program that comes as standard with your new Komatsu machine. It covers factory-scheduled maintenance, performed with Komatsu Genuine parts by Komatsu-trained technicians.
