Rigid Dump Trucks

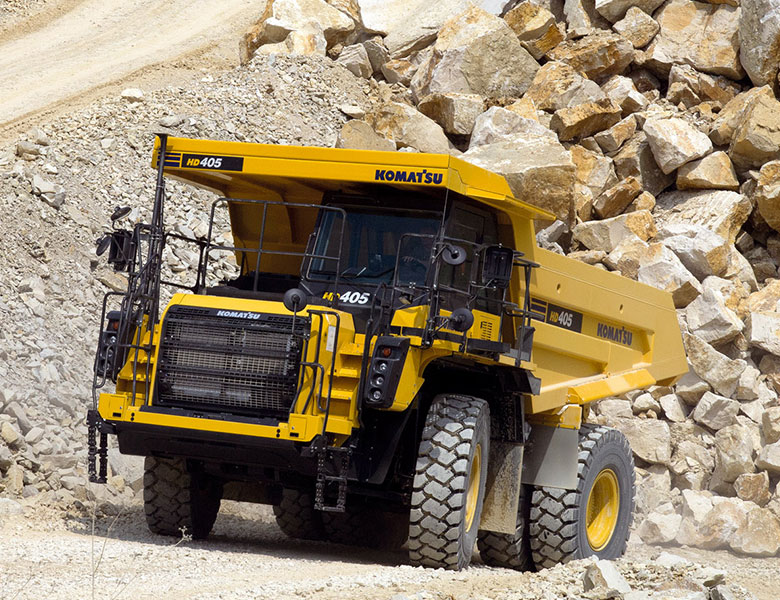

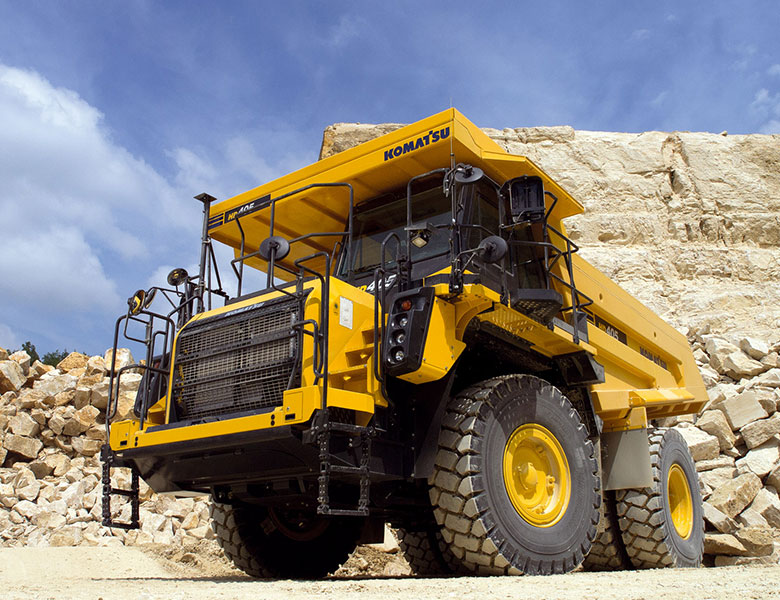

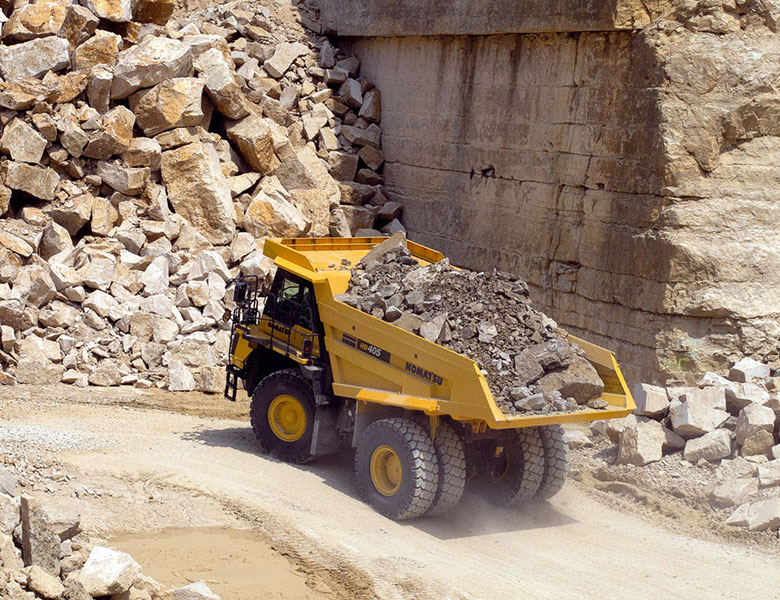

HD405-8

Productivity on demand

With the integration of the latest Komatsu engine technology, and increased power, the Komatsu HD405-8 rigid dump truck is designed to offer maximized productivity and low operation costs.

  • Automatic idling engine shut down to maximize fuel savings
  • The full automatic Komatsu Traction Control System (KTCS) feature (optional)
  • Large retarder capacityachieves both high productivity and safety
  • Smallest turning radius in class
  • Komatsu Wireless Monitoring System: Komtrax 5.0, Komtrax Plus
Get the brochure
Engine Power
386/518 kW/HP
Max. Speed
66 km/h
Body Capacity
27,3 m³ SAE
Rated Payload
40 t.
Auto Retard Speed Control (ARSC)
Komatsu Rigid Dump Trucks
Auto Retard Speed Control (ARSC)
Auto Retard Speed Control (ARSC) allows to easily set a constant downhill travel speed and lets the operator concentrate on steering. Speed can be adjusted appropriately to the slope grade at an increment of 1 km/h by clicking the control lever (± 5 km/h max.)
Small turning radius
Komatsu Rigid Dump Trucks
Small turning radius
The MacPherson strut type front suspension has a special A-frame between each wheel and the main frame. The wider space created between the front wheels and the main frame increases the turning angle of the wheels. The larger this turning angle, the smaller the turning radius of the truck.
Payload meter (PLM)
Komatsu Rigid Dump Trucks
Payload meter (PLM)
The Payload meter (PLM) manages the payload of each hauling cycle and analyzes the truck’s production volume and working conditions for a specific period. Loaded weight is displayed in real time, both on the cab’s monitor and by external display lamps.
First-Class Comfort
Komatsu Rigid Dump Trucks
Komatsu Rigid Dump Trucks
First-Class Comfort

The wide Komatsu SpaceCab™ with user-friendly controls provides a comfortable and safe work environment. A fully adjustable airsuspended seat dampens vibrations and reduces the fatigue of long shifts. Large front and electric side windows give a superior visibility and increased confidence.

  • Hydro-pneumatic suspension
  • Low-noise design
  • Heated & ventilated air-suspended seat
Large LCD colour monitor
Komatsu Rigid Dump Trucks
Komatsu Rigid Dump Trucks
Large LCD colour monitor

Large LCD colour monitor: A large user-friendly colour monitor enables safe, accurate and smooth work. Multilingual and with all essential information available at a glance, it features simple and easy-to-operate switches and multifunction keys that provide fingertip access to a wide range of functions and operating information

Safety first
Komatsu Rigid Dump Trucks
Safety first

Safe cab access thanks to the low angle of the front stairways with handrails, slip-resistant.

Speed limiter: Maximum travel speed is limited independently for both empty and loaded conditions

Antilock brake system (ABS) (optional): This system prevents the tires from locking when using the service brake and the retarder, thus minimizing skidding under slippery conditions.

Easy maintenance
Komatsu Rigid Dump Trucks
Easy maintenance

Ground access battery box and battery disconnect switch: For easy and safe daily check and service work, the battery box and battery disconnect switch are both accessible from ground level.

Centralized greasing points: Greasing points are located accessible from ground level to make daily maintenance easier.

Centralized arrangement of filters: The filters are centralized so that they can be serviced easily

KOMTRAX and Komatsu Care
Komtrax™ is Komatsu’s state of the art wireless monitoring system. It gives you an easy way to track your machines, monitor their performance and stay up to date about the status of your equipment. Knowledge gained from KOMTRAX saves you time and maximises your profits.

Komatsu CARE™ is a maintenance program that comes as standard with your new Komatsu machine. It covers factory-scheduled maintenance, performed with Komatsu Genuine parts by Komatsu-trained technicians.
Environmental data
Environmental data

Komatsu has committed to halving CO2 emissions from 2010 levels by 2030 and we will work to achieve net zero CO2 emissions (carbon neutrality) from our production activities by 2050. In addition, we will deploy the relevant technologies at material suppliers and other partners to help them also achieve carbon neutrality in their operations.
